New Generation of Induction Hardened Rolls

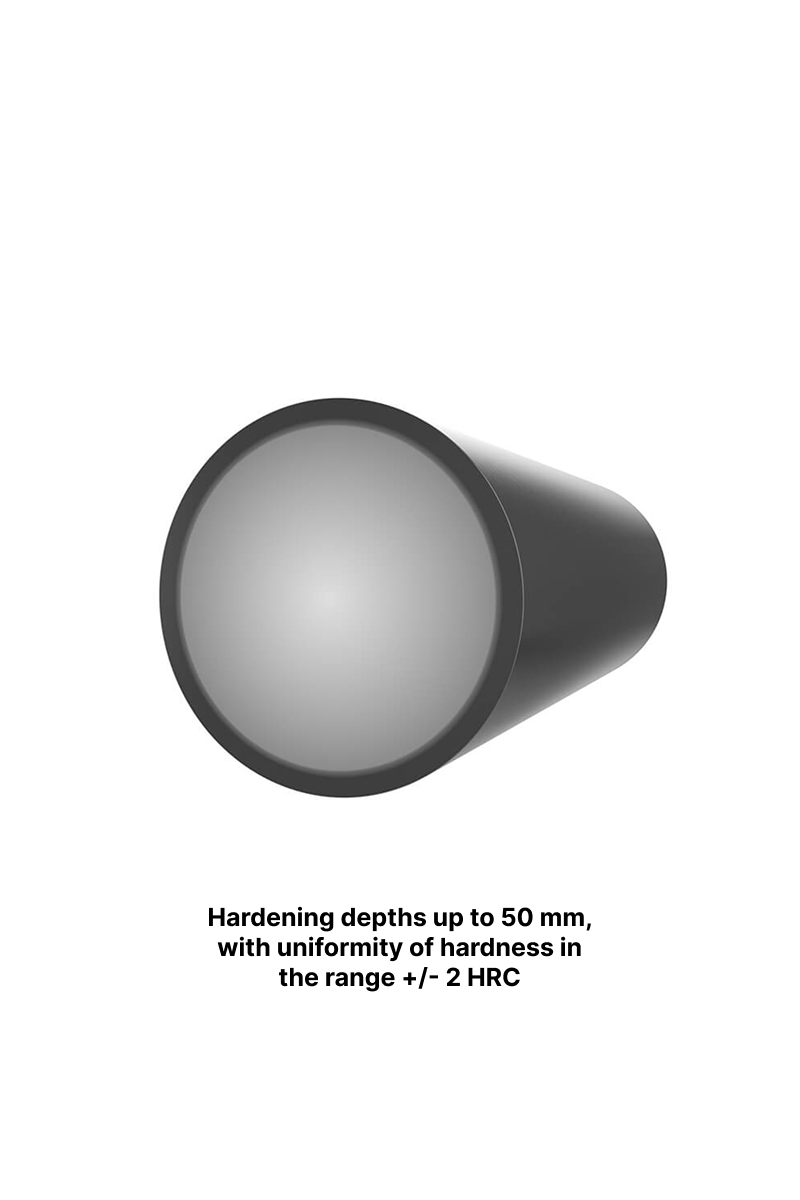

Our bi-frequency machines feature two inductors operating simultaneously: one at high frequency (200 Hz – 800 Hz) and the other at low frequency (50 Hz – 200 Hz). The entire induction hardening process is automated and computer-controlled. The induction frequency is continuously adjustable, enabling varying hardening depths. These machines are also suitable for re-hardening used rolls and pre-heating rolls.
Vertical Bi-Frequency Induction Hardening Machine BIKS 750
Technical Features
| Dimensions | 12,30 x 5,75 x 16,55 m |
| Weight of the empty machine | 65 t |
| Weight of the loaded machine | 100 t |
| Volume of cooling tank | 21 m³ |
| Volume of the lower reservoir | 25 m³ |
| Traverse speed by hardening | 0,5 – 6 mm/s |
| Load (roll) lifting speed | 8 – 12 mm/s |
| Traverse speed of supporting thorn | 8 – 12 mm/s |
| Workpiece rotation speed | 0,5 – 3 o/s |
| Total electro power; CNC control system | 1650 kW; CNC krmilno kontrolni sistem |
| Diameter of the roll | 250 – 750 mm |
| Length of the roll | 2500 – 6000mm |
| Weight of the roll max | 10 t |
Vertical Bi-Frequency Induction Hardening Machine BIKS 830
Technical Features
| Dimensions | 7,40 x 4,80 x 22,50 m |
| Net weight | 60 t |
| Weight | 100 t |
| Volume of cooling tank | 27 m³ |
| Volume of lower tank | 25 m³ |
| Traverse speed by hardening | 0,5 – 6 mm/s |
| Load (roll)-lifting speed | 8 – 12 mm/s |
| Traverse speed of supporting thorn | 5 – 27 mm/s |
| Workpiece rotation speed | 0,5 – 3 o/s |
| Instaled power | 1230 kW; CNC krmilno kontrolni sistem |
| Diameter of the workpiece (roll) | 250 – 830 mm |
| Lenght of the workpiece (roll) | 2500 – 5000mm |
Types of Products
