Custom-Made Winches
We specialize in manufacturing custom winches designed for the transportation of materials and personnel in the construction and maintenance of shafts, within mines, on construction sites, and in various work environments.
Our winches are engineered for specialized applications and are suitable for operation in demanding conditions. For the mining sector, we produce winches for shaft construction, portable winches, operational winches, scrapers…
Hoisting Winch 90 kN
The 90 kN shaft winch is a custom-engineered vertical hoisting system designed for lifting/lowering loads in shafts and for validated personnel transport, with high mechanical durability and controlled speed characteristics.
The system is prepared for reinforced frame loads and redundant braking architectures when required by application or safety model.
Technical Features
| Load capacity | 90 kN |
| Raising/lowering speed | 1 m/s |
| Steel rope diameter | 28 mm |
| Steel rope length | 1200 m |
Winch 70 kN
The 70 kN shaft winch is a vertical hoisting unit manufactured on demand and is intended for lifting and lowering material loads in mining or industrial shafts and on worksites, with reinforced mechanical durability for cyclic and dynamic loads.
The system is designed for material lifting in shafts and incline-ready routing, and can be configured with frame reinforcement and braking redundancy according to project requirements.
Technical Features
| Load capacity | 70 kN |
| Raising/lowering speed | 0,5 m/s |
| Steel rope diameter | 28 mm |
| Steel rope length | 1200 m |

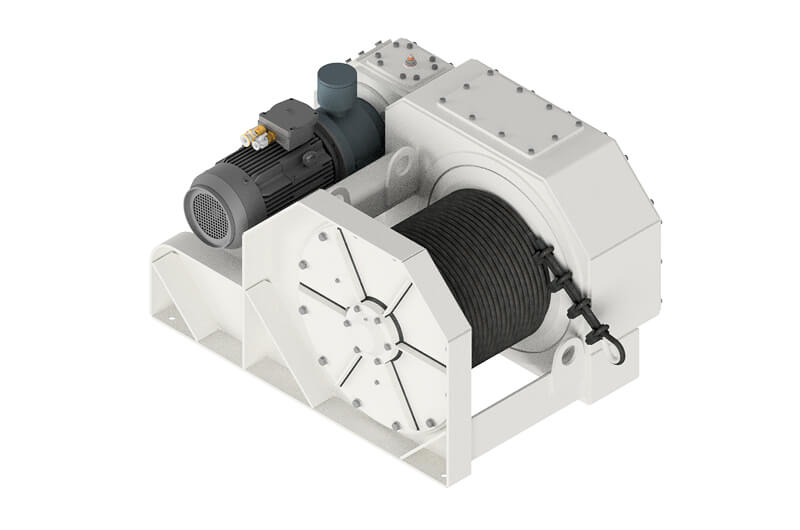

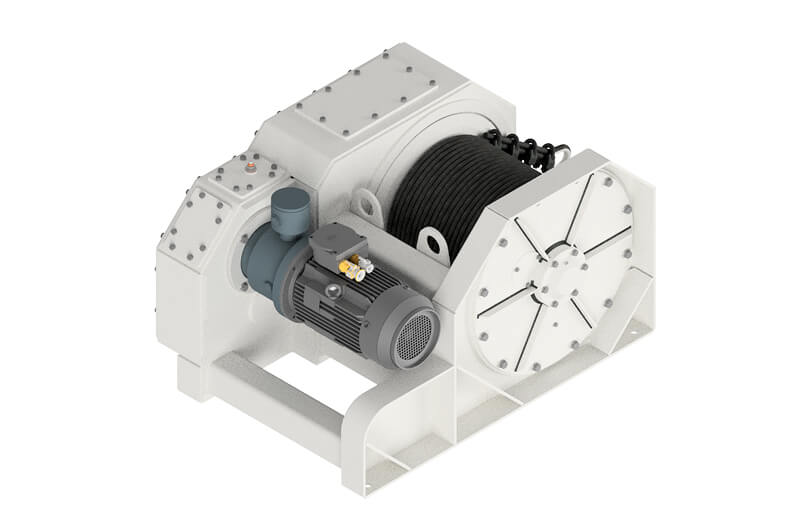

Inclined Winch VS 60 kN
The VS 60 kN inclined winch is a compact, custom-built haulage unit. It is designed for controlled hauling of medium-weight loads along mining inclines where limited installation space and a low, stable transport operating speed are required.
The unit is intended exclusively for material transport. It features a mechanical assembly adapted for operation on inclines and is equipped with protected drive components for reliable performance in demanding and abrasive underground working conditions.
Technical Features
| Pulling force | 60 kN |
| Raising/lowering speed | 0,12 m/s – 0,14 m/s |
| Steel rope diameter | 20 mm |
| Steel rope length | 100 m |
| Dimensions | 960 x 1320 x 790 mm |
| Power | 7,5 kW |

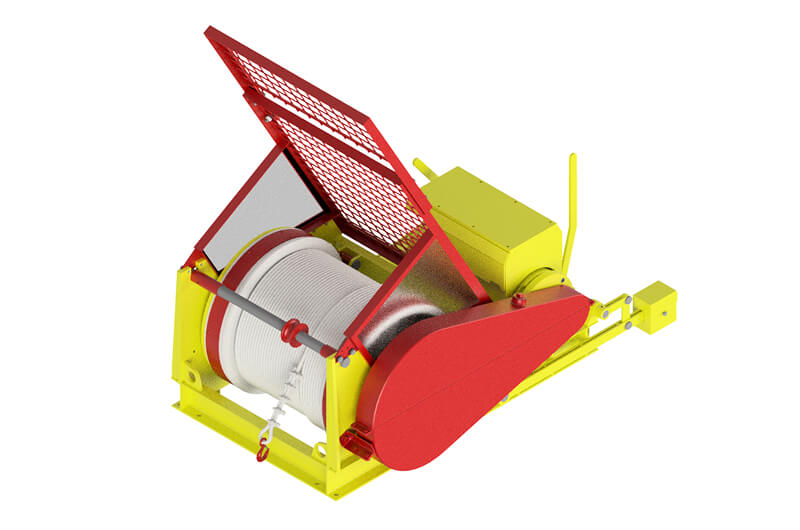

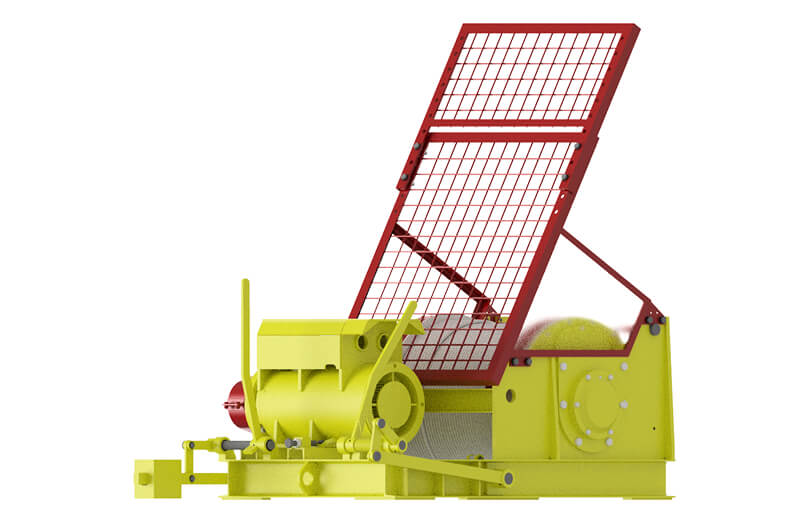

Inclined Winch PV 15/22
The PV 15/22 inclined winch is a custom-built, multi-purpose haulage system designed for the transport of medium-weight loads along mining inclines and industrial transport lines, with the capability for operation at greater depths and over longer distances.
The unit is intended for material transport and features a mechanical design adapted for operation on inclined planes, as well as an increased drum capacity, enabling reliable hauling in deep or extensive mining operating systems.
Technical Features
| Pulling force | 14 kN |
| Lifting/lowering speed | 1,28 m/s |
| Steel rope diameter | 16 mm |
| Steel rope length | 600 m |
| Dimensions | 2130 x 1220 x 1610 (2000) mm |
| Power | 22 kW |

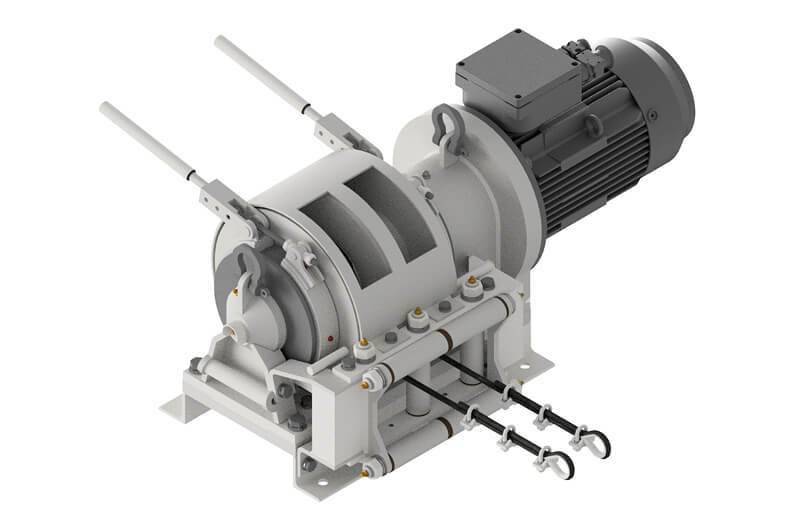

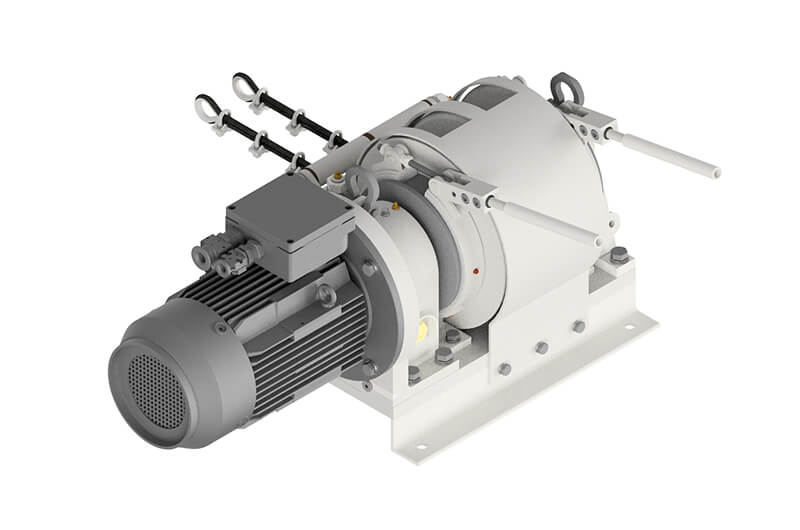

Scraper Winch
The scraper winch is a custom-built haulage system featuring two drums and a planetary gearbox.
It is designed exclusively for long-distance material hauling in soft ground conditions, deep working areas, and underwater routes, most commonly at improvised mining or industrial sites.
The system operates with two wire ropes, which are connected to the working tool via short chains. The winch is floor-anchored, allowing controlled absorption of hauling forces and ensuring stable and reliable material transport under wet, soft, or submerged working conditions.
Technical Features
| Pulling force | 5 kN |
| Raising/lowering speed | 0,43 – 1 m/s |
| Steel rope diameter | 9,5 mm |
| Steel rope length | 2 x 40m |
| Power | 4 kW |
